Garmin Catalyst 2

BUILT TO DRIVE

SIMPLE DESIGN

• Easily secure Garmin Catalyst 2 to your windshield in seconds. The small and unobtrusive all-in-one design features a 3-inch touchscreen display to easily align the camera and adjust settings.

HD CAMERA

• The built-in 1440P HD camera records sharp video of your track sessions on the pre-installed memory card. Garmin Clarity™ HDR optics capture crisp video detail in all weather conditions.

POLARIZED LENS COVER

• The included lens cover can be easily removed or added to reduce any windshield glare.

MOUNT-COMPATIBLE

• This device includes an adapter for an action cam mount and is also compatible with alternate mount accessories.

ON THE TRACK

REAL-TIME LAP DATA

• See your last lap time, best lap time, adaptive delta time on a red (behind) or green (ahead) gradient at a glance, alongside number of laps and total session time.

TRACK DATABASE

• The device is preloaded with a track database featuring road courses from around the world. You can also create custom tracks and configurations.

REFINED TRUE TRACK POSITIONING™ TECHNOLOGY

• This unique technology uses built-in accelerometers, gyroscopes, image processing and 25 Hz multi-GNSS positioning to generate your racing line on the track and more.

DRAG RACING TIMER

• Record your drag racing time and distance milestones, such as your 0–60 mph time and 1/8-mile and 1/4-mile times.

AFTER THE SESSION

ADAPTIVE COACHING

• This device compares your sessions and gives immediate, adaptive suggestions to show areas for improvement.

VAULT VIDEOS

• With a Vault plan, your optimal and best lap videos from every session are automatically saved and accessible via the Garmin Catalyst app3.

GROUP SESSIONS

• List your sessions in the order that makes the most sense to you — including by track or date — via the Garmin Catalyst app.

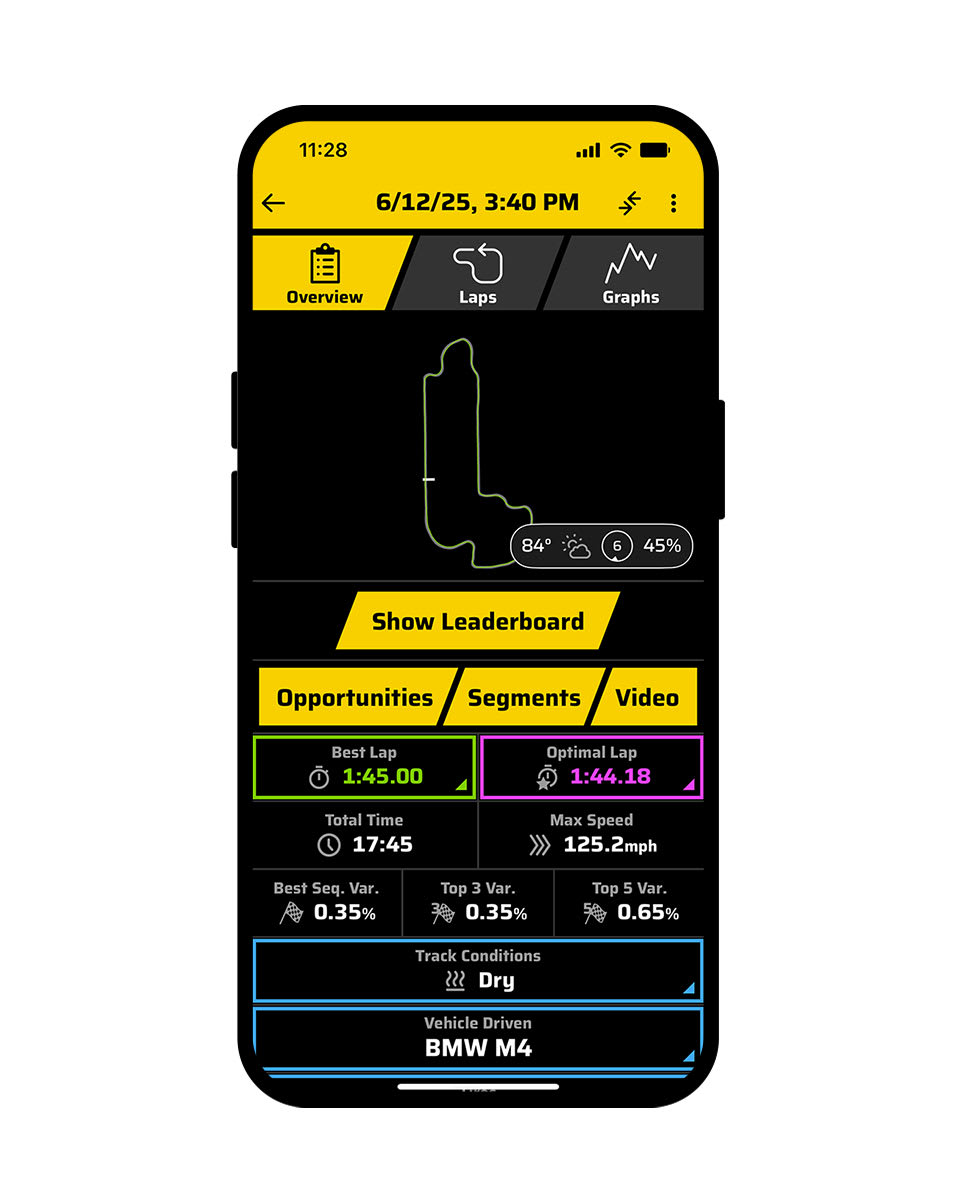

SESSION REVIEW

• Compare your optimal lap to your intelligent average lap data. Plus, view your braking, cornering, speed, apex and delta time.

In The Box:

• Garmin Catalyst™ 2
• Pre-installed 32 GB microSD™ card
• Low profile magnetic mount
• Adapter for action cam mount
• Polarized lens cover
• Vehicle power cable (4 meters)
• Power/data cable (1.5 meters)
• Dual port vehicle power adapter
• Documentation

Specs:

• Dimension: 3.34" W x 1.98" H x 1.23" D (8.29 x 5.03 x 2.15 cm)
• Weight: 4 oz (115 g)
• Display Type: 3.0" color TFT, with on-cell capacitive touch panel
• Display Size: 2.61" W x 1.49" H (6.6 x 3.8 cm); 3.0" (7.6 cm)
• Display resolution: 640 x 360 pixels
• Magnetic Mount: Yes
• Mount type: 11 mm ball

• Battery Type: rechargeable lithium-ion
• Battery life: up to 45 minutes
• Charging time: 2.5 hours
• Power Source: USB-C
• Data cards: yes (32 GB microSD™ Class 10 card included: accepts up to 512 GB microSD

• Sensors: GPS, Galileo. BeiDou, and 25 Hz multi-GNSS positioning

• Camera Resolution: 1440p
• Field of View: 140 degrees (diagonal)
• Frame Rate: up to 30 FPS
• Clarity ™ HDR
• Mobile app to review videos: Yes (Garmin Catalyst™ app)
• Vault compatible (secure online video storage): Yes

• Smartphone platform compatibility: Garmin Catalyst™ app
• Works with Garmin app on a compatible smartphone
• Requires Bluetooth®-enabled smartphone
• Works with vehicle stereo

• True Track Positioning™ (your racing line)
• Real-time audio cues/audio coaching

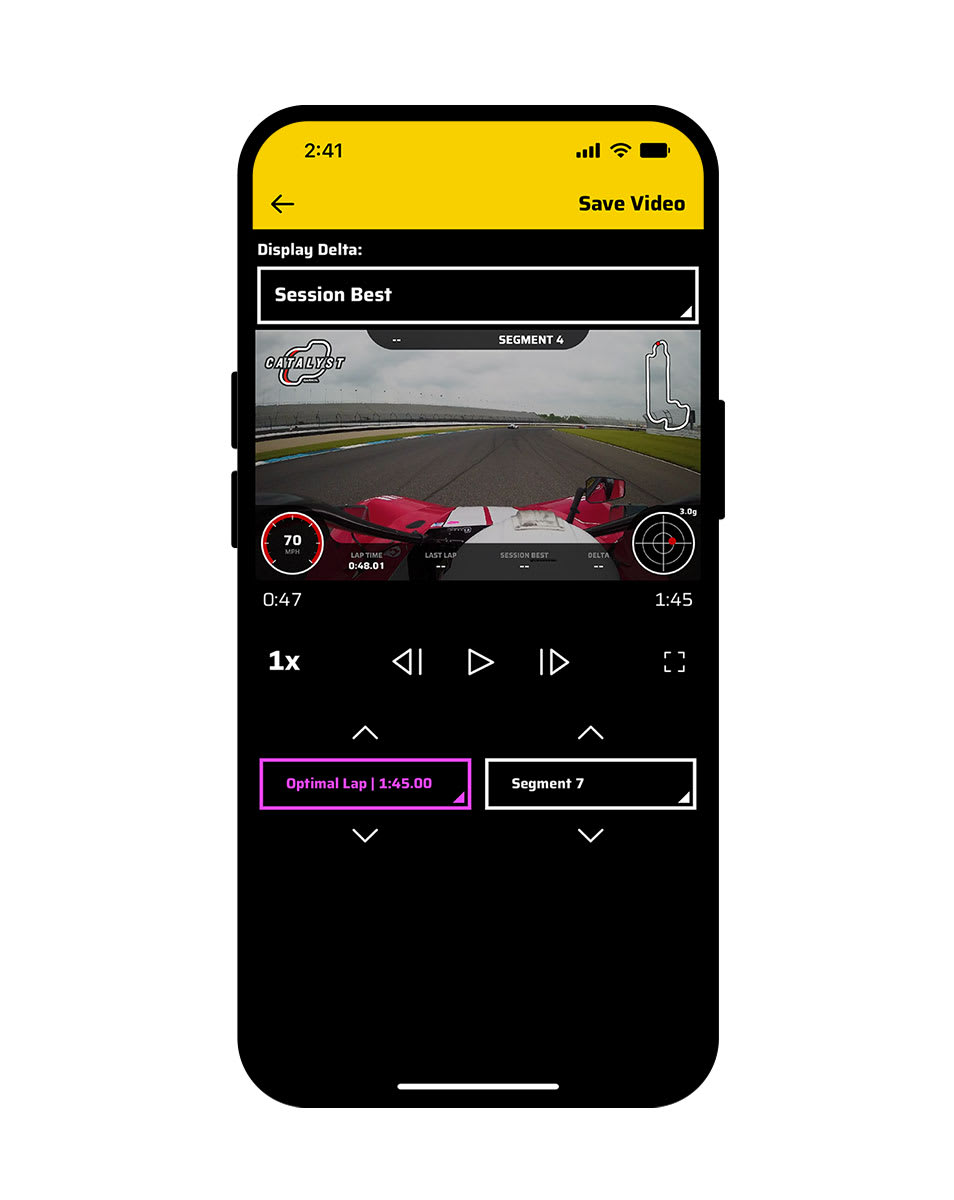

• True Optimal Lap™ with video
• Built-in accelerometers
• Bluetooth® connectivity: yes (works with Bluetooth®-enabled helmet/headset (sold separately))
• Displays best lap time, adaptive delta time, number of laps and total session time
• Preloaded global track database
• Session comparisons
• Driving performance scores
• Automatically identifies areas of biggest time gain
• Supports multiple users
• Supports multiple cars
• Stores history of all on-track performance
• Segment analysis (racing line, speed and acceleration/deceleration)
• Leaderboards
• Leaderboard videos (requires Vault subscription)
• Friend comparisons
• Friend videos (requires Vault subscription)
• Videos with overlays
• Video with audio coaching
• Exportable videos


Disclaimers:

• *1 WARNING: This device is intended only for recreational use in a circuit environment. Never use this device on public roadways. Failure to follow this warning may result in an accident causing property damage, serious personal injury, or death. You are responsible for using this device in a safe and prudent manner.
• *2 Requires use of the Garmin Catalyst app on your compatible tablet or smartphone
• *3 Requires internet connection; Wi-Fi recommendedThe Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
